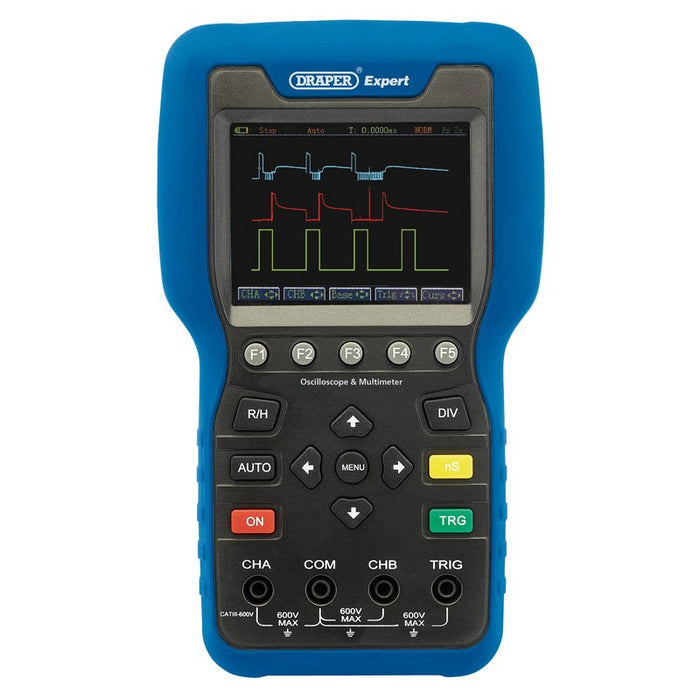

Draper Tools 3 Channel 20MHZ Oscilloscope 64573

Expert Quality, designed with the following capabilities, 3 - channel, 20MHz digital oscilloscope, true 6000 count RMS digital multi - meter. Supplied with AC/DC power adaptor, alligator clips, BNC banana adaptor, inductive pick up, multi - meter test leads, oscilloscope probes, piercing probe, secondary pick up, USB cable and storage case with shoulder strap. Features: 100ms/s real - time sampling rate, 20MHz real - time bandwidth, Automotive electrical measurements, 51 kinds of automotive standard reference waveform, Automatic tracking measurement on input to adjust the vertical amplitude/horizontal time - base, triggering the stall feature without user intervention, Large dynamic measurement range from 10mV to 500V, Large TFT LCD screen capable of displaying 4 measurement parameters, Two kinds of cursor measurement mode selection, Built - in re - chargeable battery, Continuous track record for up to 12 hours, Standard USB interface provides easy download with a computer connection for data analysis and test results archive

• 100ms/s real-time sampling rate, 20MHz real-time bandwidth

• Automotive electrical measurements, 51 kinds of automotive standard reference waveform

• Automatic tracking measurement on input to adjust the vertical amplitude/horizontal time-base, triggering the stall feature without user intervention

• Large dynamic measurement range from 10mV to 500V

• Large TFT LCD screen capable of displaying 4 measurement parameters

• Two kinds of cursor measurement mode selection

• Built-in re-chargeable battery

• Continuous track record for up to 12 hours

• Standard USB interface provides easy download with a computer connection for data analysis and test results archive
