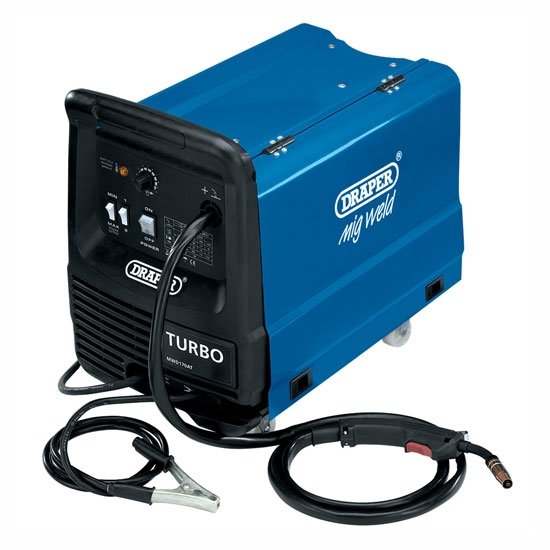

Draper 160A Gas/Gasless Turbo Mig Welder 12018
Draper Tools Logo

Draper 160A Gas/Gasless Turbo Mig Welder 12018

SKU: DRA12018

12018

$602.97

Suggested Retail Price
INC GST
Overview
Features
Specifications
Resources

Uses both solid or filler wire with a flux core. During the weld process the flux melts and protects the weld, therefore no gas is required to shield the weld pool, making it ideal for use outdoors in windy conditions.

  • Non-live direct fit safety torch
  • Four stage power setting
  • Variable wire speed control
  • Thermal overload protection
  • Earth clamp
  • Supplied with face mask and combined chipping hammer/wire brush
  • Fitted with cable and approved plug

ADDITIONAL FREIGHT CHARGES MAY APPLY FOR BULKY ITEMS
Phase Single
Input current 16A
Output amperage range 40 - 160A
Amperage at 20% duty 120A
No load voltage 23-38V
Filler wire sizes 0.6 - 1.2mm
Dimensions 610 x 370 x 450mm
Weight 31kg

ADDITIONAL FREIGHT CHARGES MAY APPLY FOR BULKY ITEMS


Instruction Manual

Parts List
