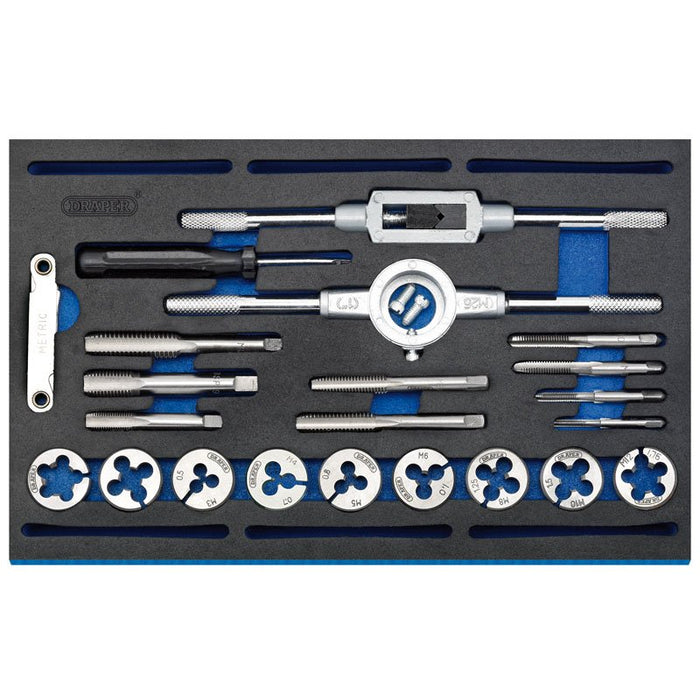

Draper Tools Combination Tap and Die Set - Metric and BSP in EVA Foam Insert Tray (22 Piece)

SKU: DRA63520

63520 IT-EVA37

$124.74

Suggested Retail Price
INC GST
About

Draper Tools Combination Tap and Die Set - Metric and BSP in EVA Foam Insert Tray (22 Piece) Overview

Expert Quality, manufactured from carbon steel. Taps and dies suitable for cleaning and cutting threads on mild steel and aluminium. Supplied complete in a two tone 1/4 drawer EVA insert tray made from closed cell foam, suitable to be used in Draper and Draper Expert tool chests and other manufacturers similar tool chests.

Draper Tools Combination Tap and Die Set - Metric and BSP in EVA Foam Insert Tray (22 Piece) Contents

  • 7 x metric dies: 3 x 0.5, 4 x 0.7, 5 x 0.8, 6 x 1.0, 8 x 1.25, 10 x 1.5, 12 x 1.75 - 1" O/D

  • 2 x BSP dies: 1/8", 1/4" BSP

  • 2 x BSP taps: 1/8", 1/4" BSP

  • 7 x metric plug taps (bottoming): 3 x 0.5, 4 x 0.7, 5 x 0.8, 6 x 1.0, 8 x 1.25, 10 x 1.5, 12 x 1.75 - 1" O/D - American pattern 1/2" capacity

  • 1 x die holder 1" O/D with guide

  • 1 x screw-pitch gaugescrewdriver

Draper Tools Combination Tap and Die Set - Metric and BSP in EVA Foam Insert Tray (22 Piece) Dimensions

138 x 270 x 40mm
