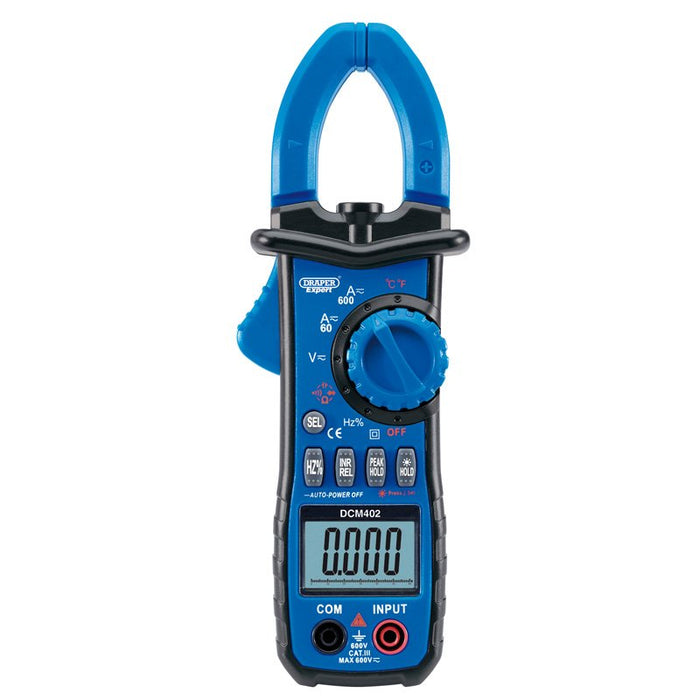

Draper Tools Digital Clamp Meter (Auto-Ranging)
Draper Tools Expert Auto-Ranging Digital Clamp Meter with Linear Bar Graph Function 41967
Draper Tools Digital Clamp Meter (Auto-Ranging)
Draper Tools Expert Auto-Ranging Digital Clamp Meter with Linear Bar Graph Function 41967
Draper Tools Logo

Wholesale Draper Tools Expert Auto-Ranging Digital Clamp Meter with Linear Bar Graph Function 41967

SKU: DRA41967

41967 DCM402

$197.43

Suggested Retail Price
INC GST
Overview
Features
Specifications

Auto and manual ranging clamp meter capable of voltage, current, resistance, diode, continuity, capacitance, frequency, duty cycle and temperature testing. Maximum jaw - opening diameter of 36mm, backlit LCD screen, auto power off, linear bar graph functions and a useful inspection light. Supplied with test leads, temp probe and a case.

  • Auto and manual ranging clamp meter capable of voltage, current, resistance, diode, continuity, capacitance, frequency, duty cycle and

  • Temperature testing

  • Maximum jaw-opening diameter of 36mm

  • Backlit LCD screen, auto power off, linear bar graph functions and a useful inspection light

  • Supplied with test leads, temp probe and a case

AC Amps 60A/600A
AC Current 60A/600A
AC Voltage 6V/60V/600V
Automatic Power Off Yes
Battery 3 x AAA (not supplied)
Capacitance 999nF/99.99nF/999.9nF/9.999µF/99.99µF/999.9µF/9.999mF/99.99mF
DC Amps 60A/600A
DC Current 60A/600A
DC Voltage 600mV/6V/60V/600V
Diode on/off Test Yes
Dimensions 228mm x 158mm x 58mm
Duty Ratio Yes
Dwell N/A
Frequency 100Hz/1000Hz/10kHz/100kHz/1MHz/10MHz
Resistance (Ohms) 6000Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
Symbol Unit Data Hold N/A
TACH N/A
Temperature -50 to 300ºC
Temperature Range -50°C - 1000°C/-58°F - 1832°F
Weight 400g (approx.)
