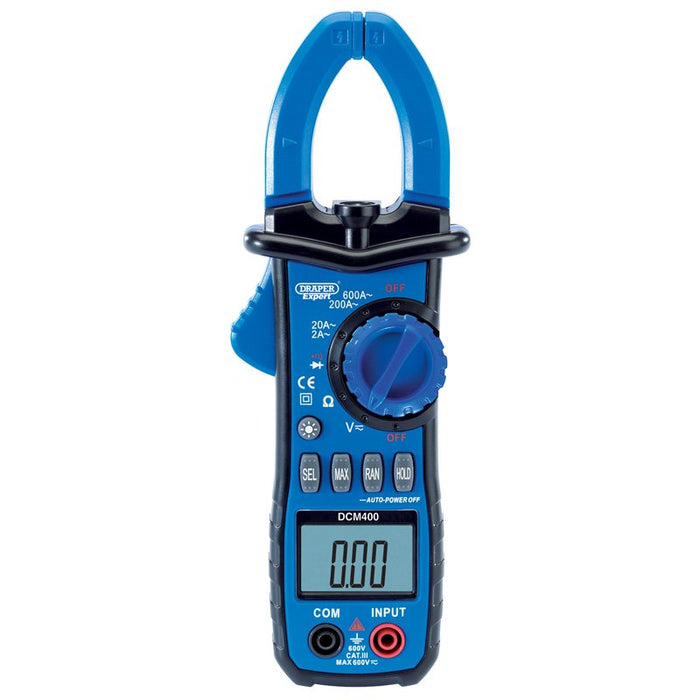

Draper Tools Digital Clamp Meter (Manual-Ranging)
Draper Tools Logo }

Wholesale draper-tools-digital-clamp-meter-manual-ranging

SKU: DRA41864

41864 DCM400

$105.58

Suggested Retail Price
INC GST
Overview
Specifications

Expert Quality, auto and manual ranging clamp meter capable of voltage, current, resistance, diode and continuity testing. Maximum jaw - opening diameter of 36mm, backlit LCD screen, auto power off and a useful inspection light. Supplied with test leads and a case.

AC Amps 2A/20A/200A/600A
AC Current 2A/20A/200A/600A
AC Voltage 200mV/2V/20V/200V/600V
Automatic Power Off Yes
Battery 3 x AAA (not supplied)
Capacitance N/A
DC Current N/A
DC Voltage 200mV/2V/20V/200V/600V
Diode on/off Test Yes
Dimensions 228mm x 156mm x 62mm
Duty Ratio Yes
Dwell N/A
Frequency N/A
Resistance (Ohms) 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ
Symbol Unit Data Hold Yes
TACH N/A
Temperature Range N/A
Weight 480g (approx.)
