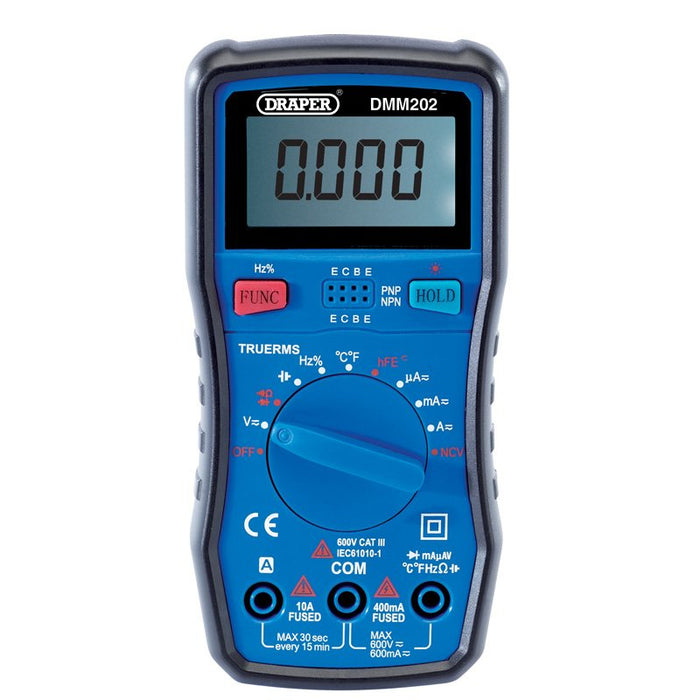

Draper Tools Digital Multimeter
Draper Tools Logo

Wholesale Draper Tools Auto-Ranging Digital Multimeter 1 x Test Leads 1 x Temp Probe 41820

SKU: DRA41820

41820 DMM202

$89.54

Suggested Retail Price
INC GST
Overview
Features
Specifications

Auto-ranging achieving TRMS 5999 counts and voltage, current, hEF, continuity, resistance, temperature, diode and non-contact voltage testing. Fitted with a backlit LCD screen, auto power-off, continuity buzzer and data hold features. Supplied with test leads and a temp probe.

  • Auto ranging multimeter
AC Amps 600uA/6000uA/60mA/600mA/6A/10A
AC Current 600µA/6000uA/60mA/600mA/6A/10A
AC Voltage 6V/60V/600V
Automatic Power Off Yes
Capacitance 10nF/100nF/1µF/10µF/100µF/1000mF/10mF/100mF
DC Amps 600uA/6000uA/60mA/600mA/6A/10A
DC Current 600µA/6000uA/60mA/600mA/6A/10A
DC Voltage 600mV/6V/60V/600V
Diode on/off Test Yes
Dimensions 172mm x 174mm x 50mm
Duty Ratio Yes
Dwell N/A
Frequency 100Hz/1000Hz/10kHz/100kHz/1MHz/10MHz
Resistance (Ohms) 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
Symbol Unit Data Hold Yes
TACH N/A
Temperature -20 to 1000ºC
Temperature Range -50°C - 1000°C/-58°F - 1832°F
Weight 361g (approx.)
