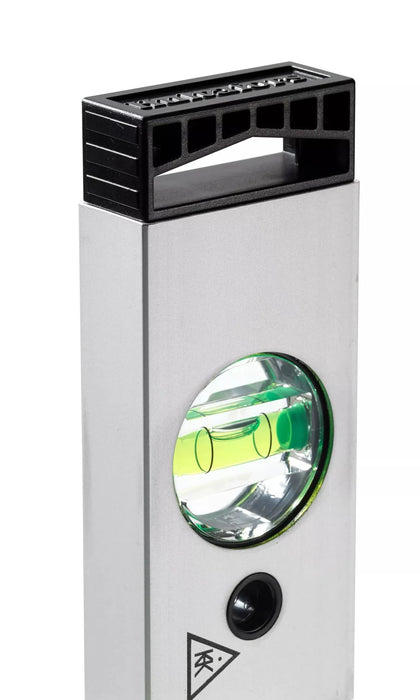

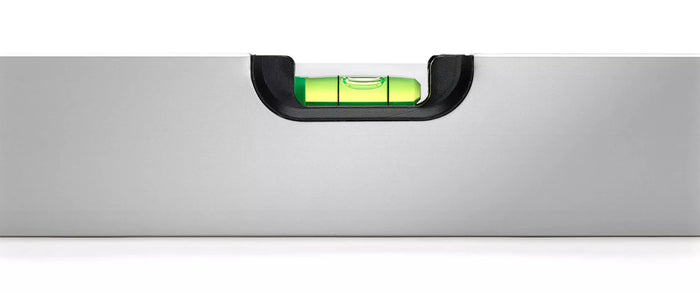

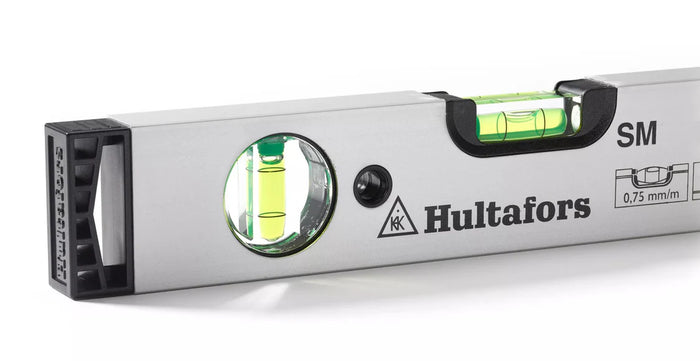

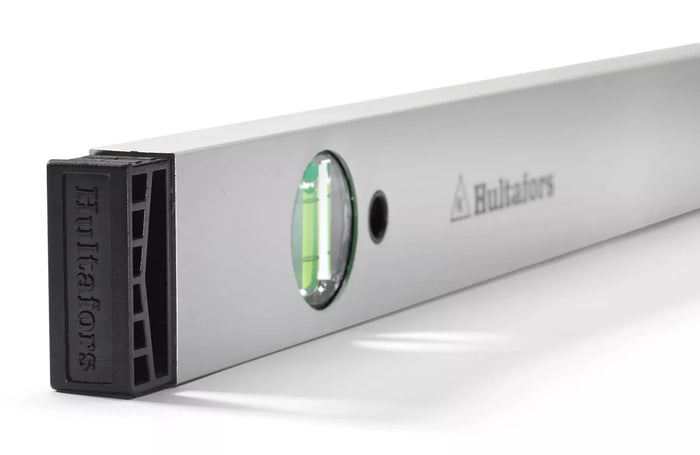

Aluminium profile measuring 49x21 mm and weighing 520 g/m. Crush-proof block vials that are highly transparent and durable.
The radius of the vial is 200 mm, giving a sensitivity of 10 mm/m.
Tolerance in normal position is ±0.75 mm/m, upside down ±1.0 mm/m.
The liquid in the vial is a low viscosity coloured oil mixture that gives the bubble optimal freedom of movement.
Highly resistant to ultraviolet light and temperature fluctuations.
The anti-static properties of the liquid means that the bubble is not affected by static electricity.
Sensitivity: 10.0 mm/m
Vials (pcs): 2
Profile dimension: 49 x 21 mm
Radius of the vial: 200 mm
Length (mm): 1,800
Width (mm): 49
Height (mm): 21
Tolerance: ±0.75 mm/m
