The hand tap consists of heavy-duty high-speed steel. For through threads and bottoming threads in unalloyed and low-alloyed steels up to a strength of 800 N/mm², malleable cast iron and non-ferrous metals. The thread is cut in three operation.

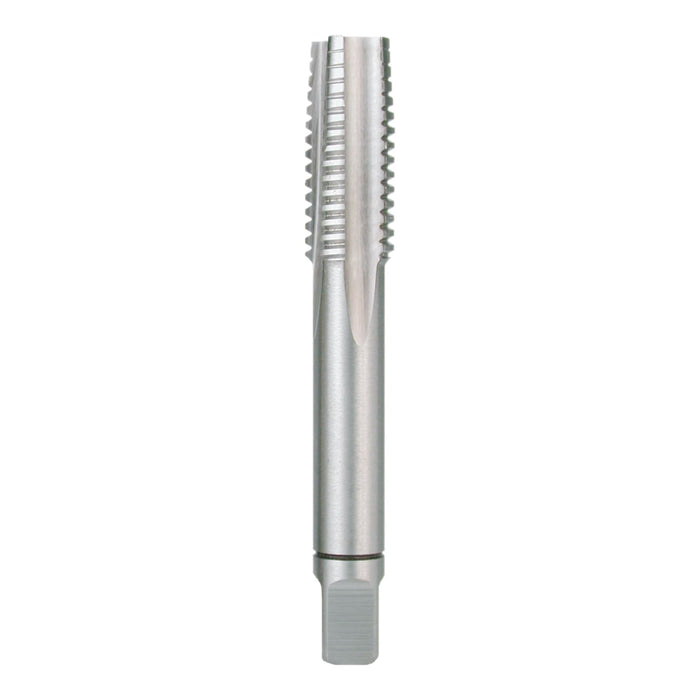

Taper tap: 5-6-thread chamfer
Length: 50.0 mm
Shaft: Square shank
Coating: uncoated
Material: HSS
Cutting Direction: right hand cutting
DIN: 352
Core Hole Diameter: 5.10 mm
Spiral Length: 16.0 mm
Tolerance: ISO 2 6H
Flank Angle: 55°
