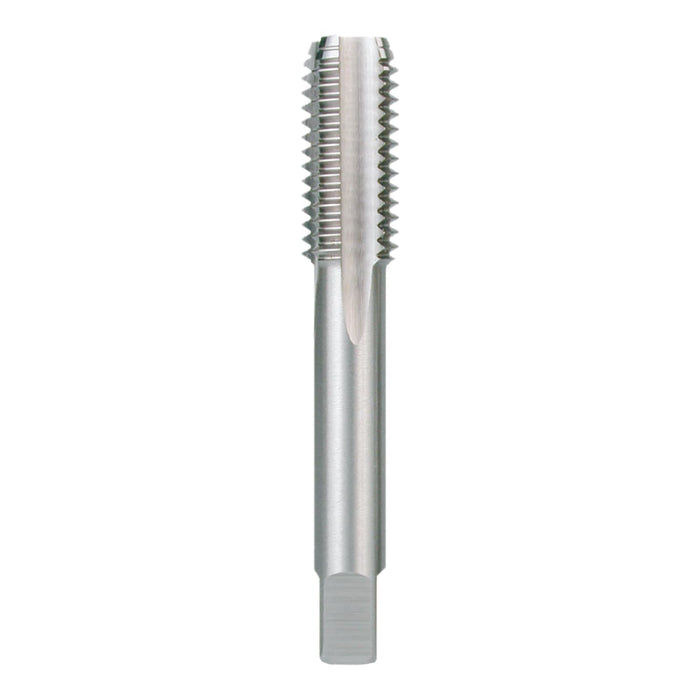

Wholesale RUKO Hand Tap M DIN 352 HSSE-Co 5 M12 Final Tap

The hand tap consists of 5% cobalt alloyed heavy-duty high-speed steel. For through threads and bottoming threads in unalloyed and alloyed steels up to a strength of 900 N/mm², malleable cast iron and non-ferrous metals. The thread is cut in three operation

Final tap: 2-3-thread chamfer

Stainless steel

Aluminium

Brass

Bronze

Plastics

Steel < 800 N/mm²

Steel < 1000 N/mm²

Length: 75.0 mm

Shaft: Square shank

Coating: uncoated

Material: HSSE-Co 5

Cutting Direction: right hand cutting

DIN: 352

Core Hole Diameter: 10.2 mm

Nominal Thread Size: M 12

Thread Pitch: 1.75 mm

Spiral Length: 29.0 mm

Tolerance: ISO 2 6H

Flank Angle: 60°
