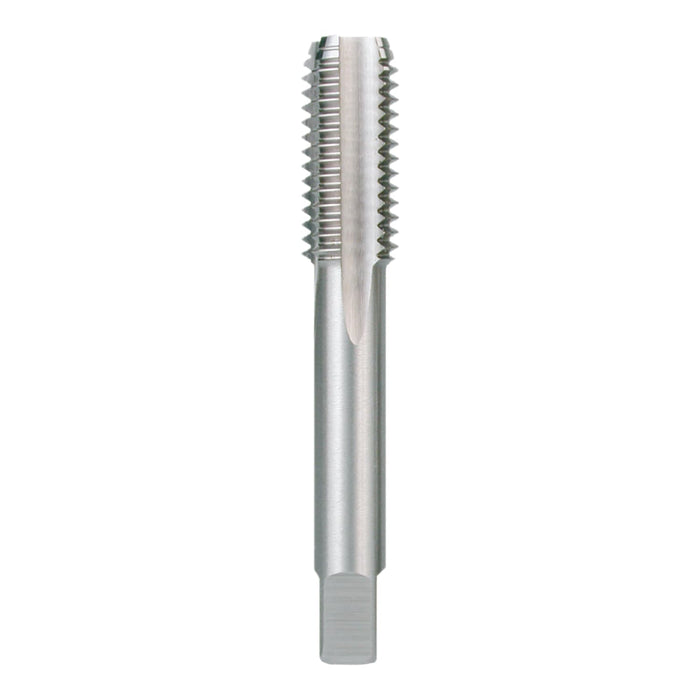

Wholesale RUKO Hand Tap M DIN 352 HSSE-Co 5 M6 Final Tap

The hand tap consists of 5% cobalt alloyed heavy-duty high-speed steel. For through threads and bottoming threads in unalloyed and alloyed steels up to a strength of 900 N/mm², malleable cast iron and non-ferrous metals. The thread is cut in three operation

Final tap: 2-3-thread chamfer

Length: 56.0 mm

Shaft: Square shank

Coating: uncoated

Material: HSSE-Co 5

Cutting Direction: right hand cutting

DIN: 352

Core Hole Diameter: 5.0 mm

Nominal Thread Size: M 6

Thread Pitch: 1.00 mm

Spiral Length: 15.0 mm

Tolerance: ISO 2 6H

Flank Angle: 60°
