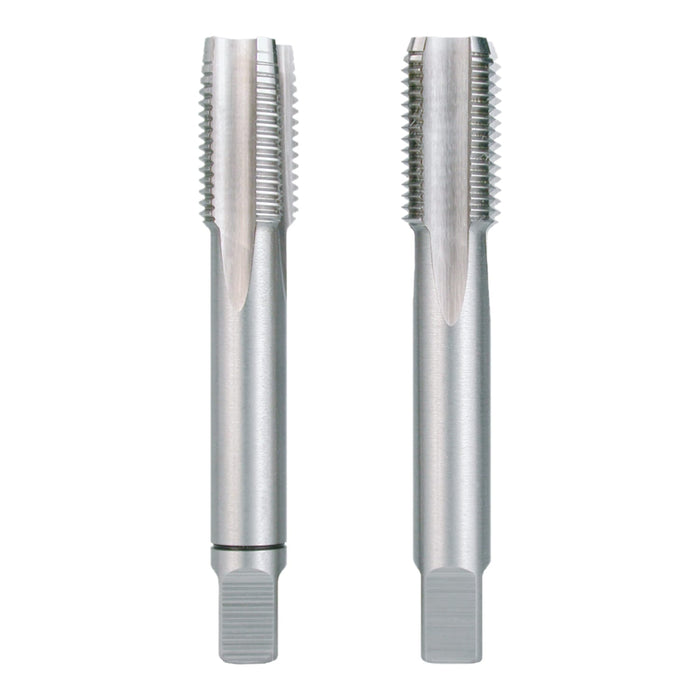

Wholesale RUKO Hand Taps G DIN 5157 HSS G 1/4in

The hand tap consists of heavy-duty high-speed steel. For through threads and bottoming threads in unalloyed and low-alloyed steels up to a strength of 800 N/mm², malleable cast iron and non-ferrous metals. The thread is cut in three operation.

Taper tap: 5-6-thread chamfer / Final tap: 2-3-thread chamfer

• Main Application: Aluminium, Brass, Plastics, Steel < 800 N/mm²

• Other Application: Bronze, Cast Iron

• Article number: 236014

• Nominal thread size G: G 1/4"

• Nominal thread size Rp: Rp 1/4"

• Net weight: 0.114 kg

• Length: 70.0 mm

• Spiral length: 20.0 mm

• Core hole diameter: 11.8 mm

• Coating: uncoated

• Shaft: Square shank

• Cutting Direction: Right hand cutting

• Material: HSS

• Tolerance: ISO 2 6H

• DIN 5157

• Flank Angle: 55°
