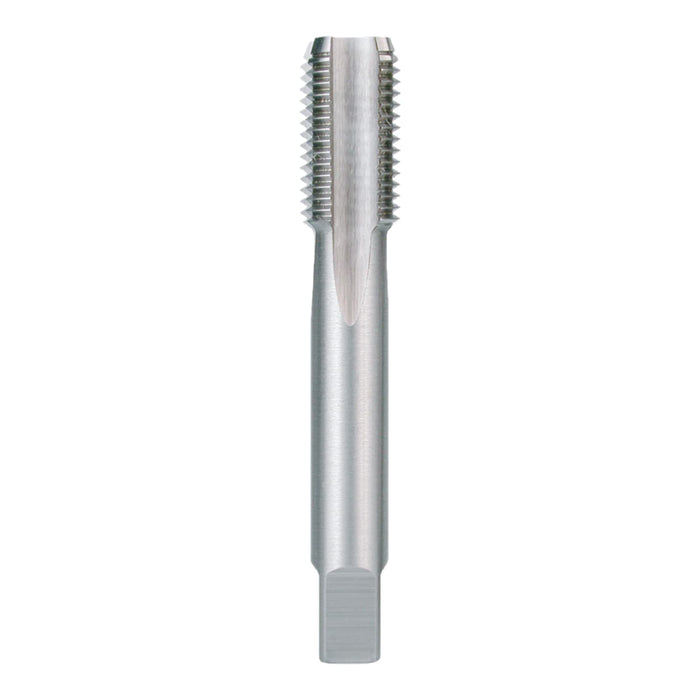

Wholesale RUKO Hand Tap MF DIN 2181 HSS MF 10 x 1.25mm Final Tap

SKU: RUK235101-2

235101-2

$25.87

Suggested Retail Price
INC GST
Overview
Application
Specifications

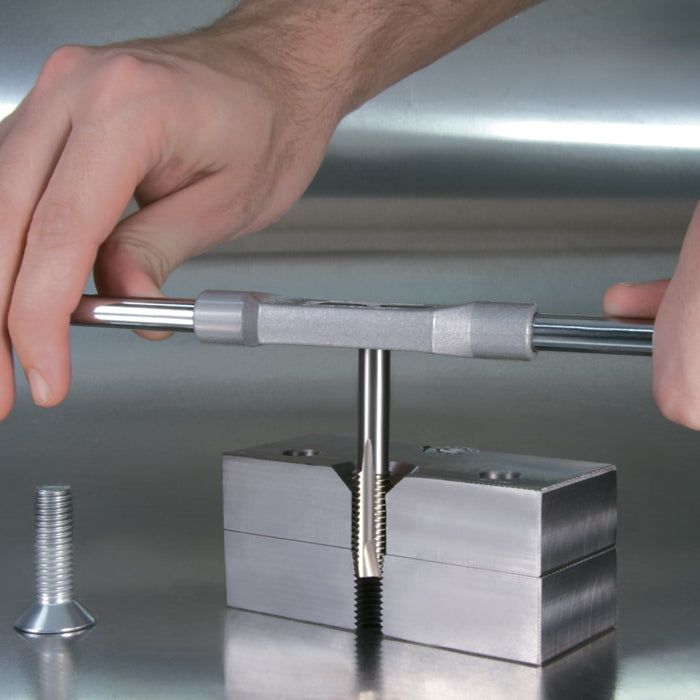

The hand tap consists of heavy-duty high-speed steel. For through threads and bottoming threads in unalloyed and low-alloyed steels up to a strength of 800 N/mm², malleable cast iron and non-ferrous metals. The thread is cut in three operation.

Final tap: 2-3-thread chamfer

Aluminium

Brass

Plastics

Steel < 800 N/mm²

Bronze

Cast Iron

Length: 70.0 mm

Shaft: Square shank

Coating: uncoated

Material: HSS

Cutting Direction: right hand cutting

DIN: 2181

Core Hole Diameter: 8.7 mm

Thread Pitch: 1.25 mm

Spiral Length: 24.0 mm

Tolerance: ISO 2 6H

Flank Angle: 60°
