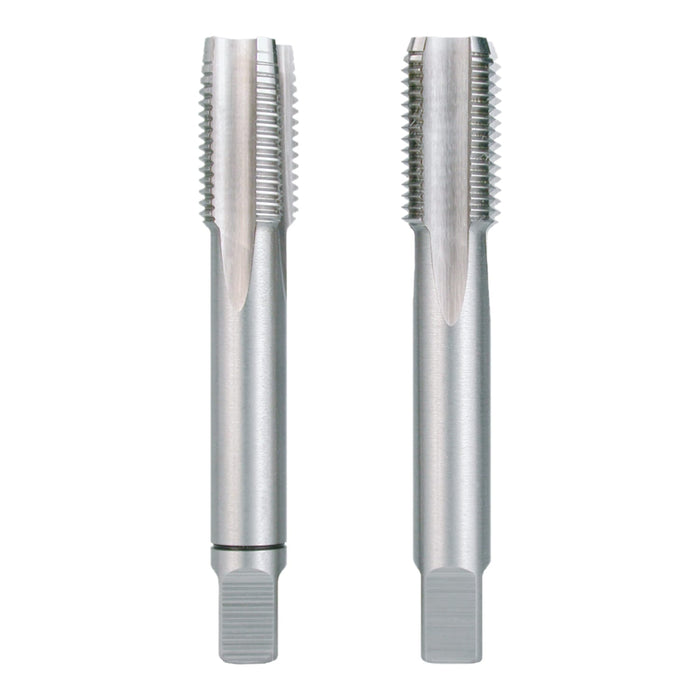

Wholesale RUKO Hand Taps MF DIN 2181 HSS MF 16 x 1.5mm, 2 Pce

The hand tap consists of heavy-duty high-speed steel. For through threads and bottoming threads in unalloyed and low-alloyed steels up to a strength of 800 N/mm², malleable cast iron and non-ferrous metals. The thread is cut in three operation.

Taper tap: 5-6-thread chamfer / Final tap: 2-3-thread chamfer

Aluminium

Brass

Plastics

Steel < 800 N/mm²

Bronze

Cast Iron

Length: 70.0 mm

Shaft: Square shank

Coating: uncoated

Material: HSS

Cutting Direction: right hand cutting

DIN: 2181

Core Hole Diameter: 14.5 mm

Thread Pitch: 1.50 mm

Spiral Length: 20.0 mm

Tolerance: ISO 2 6H

Flank Angle: 60°
