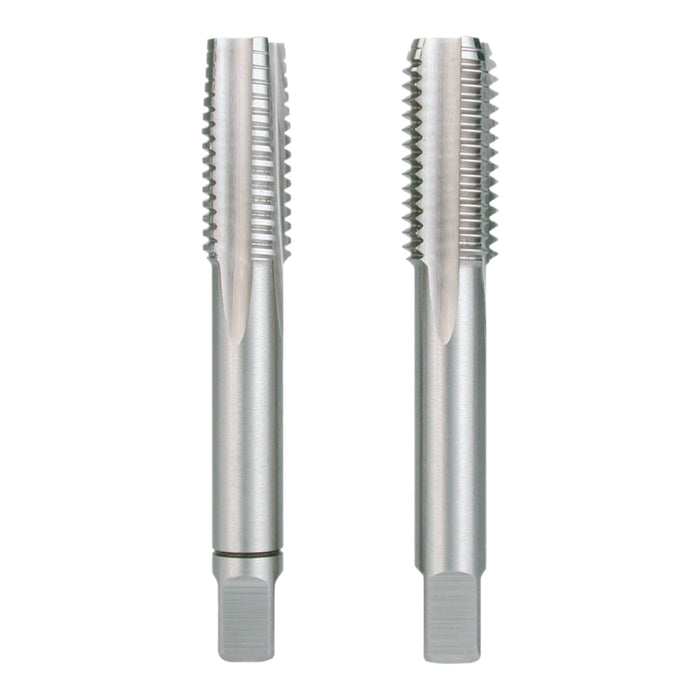

The hand tap consists of heavy-duty high-speed steel. For through threads and bottoming threads in unalloyed and low-alloyed steels up to a strength of 800 N/mm², malleable cast iron and non-ferrous metals. The thread is cut in three operation.
Taper tap: 5-6-thread chamfer / Final tap: 2-3-thread chamfer
Length: 75.0 mm
Shaft: Square shank
Coating: uncoated
Material: HSS
Cutting Direction: right hand cutting
DIN: 2181
Core Hole Diameter: 11.5 mm
Spiral Length: 24.0 mm
Tolerance: 2B
Flank Angle: 60°
