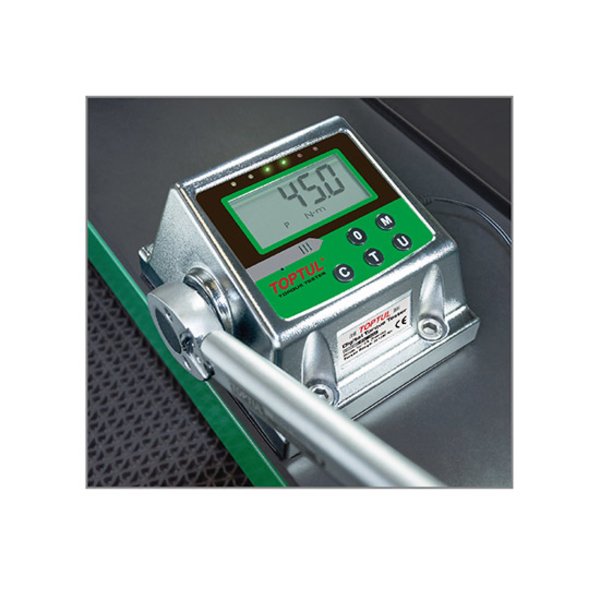

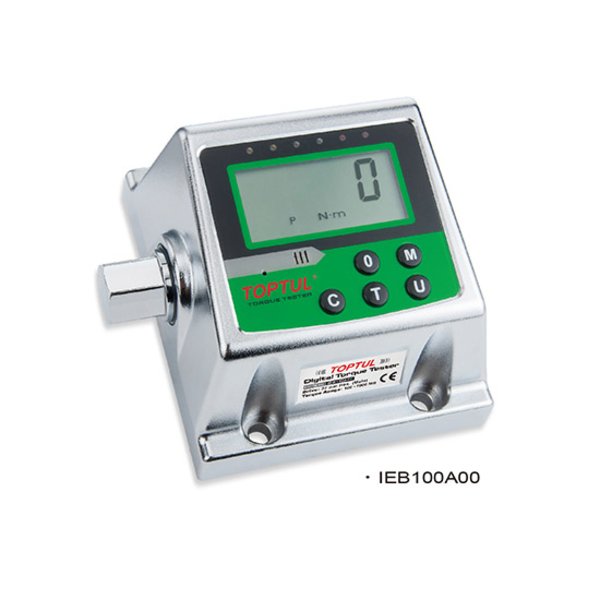

Toptul 27mm Hex Digital Torque Tester 100-1000Nm
Toptul 27mm Hex Digital Torque Tester 100-1000Nm
Toptul 27mm Hex Digital Torque Tester 100-1000Nm
Toptul 27mm Hex Digital Torque Tester 100-1000Nm
Toptul Logo

Toptul 27mm Hex Digital Torque Tester 100-1000Nm

SKU: TOPIEB100A00

IEB100A00

$1,860.94

Suggested Retail Price
INC GST
Overview
Specifications

  • ITEM NO: IEB007068 / IEB035350 / IEB100A00

  • Torque reading accuracy: ± 1% or ±3 digit accuracy

  • Operating Mode : Peak Hold Mode / Track Mode / First Peak Mode

  • Possibility to enter target torque setting and percentage tolerance setting

  • Buzzer and LED lights indicator for the target torque alarm

  • Large LCD display for clear reading of the values

  • Torque tester supplied with DIN EN ISO 6789 calibration certificate

  • LED Indicator

  • Buzzer

  • Zero Reset Button

  • Mode Switch Button

  • Unit Switch Button

  • Preset Button

  • Power On / Clear Button

  • System Reset Button

  • Buzzer

Torque Accuracy ± 1% or ±3 digit accuracy
Operating Mode Peak Hold Mode / Track Mode / First Peak Mode
Units of Measurement Nm, Ft-Lb, In-Lb, Kg-cm
Operating Mechanism Clockwise only
Operation Temperature +5°C ~ +40°C
Storage Temperature -20°C ~ +70°C
Humidity Up to 90% non-condensing
Power Supply
(AC/DC Adaptor)		 AC 100-240V at 50-60Hz input
DC 12V 1A output

(US)
(EU)
Bright LED 6 LEDs
PC Connection USB cable
Dimension 162(L) x 144(W) x 91(H)
  • IEB100A00

    • Drive: 27mm Hex. (M)

    • (Nm): 100~1000

    • (Ft-Lb): 74~738
