Wholesale Wera 8100 SA VDE 1 Zyklop Ratchet Set Insulated Reversing Lever 1/4" Drive Metric 22 Piece 004967

SKU: WER004967

WER004967

$894.06

Suggested Retail Price
INC GST
Overview
Features
Contents
Specifications

22-piece 1/4" ratchet set; VDE-insulated. For the most common VDE screw connections in electrical building installations. One Zyklop VDE ratchet with reversing lever for easy clockwise/counterclockwise change, fine-toothed (80 teeth, low return angle of only 4.5°); 10 Zyklop VDE sockets, 5 Zyklop VDE bit sockets with holding function for TORX® screws, 4 Zyklop VDE bit sockets with holding function for hexagonal socket screws, one Zyklop VDE extension (150 mm long); all tools individually tested as per IEC 60900 at 10,000 V for safe working at the approved voltage of 1,000 V. One robust textile box, compact design for space-saving tool storage; the firm and light material lowers the weight of the set - ideal for mobile use. Equipped with twist-to-unlock system for easy removal of the tools.

Individually tested

Safe working at voltages up to 1,000 V is guaranteed as Zyklop tools for electricians are individually tested at 10,000 V as per IEC 60900.

For electrical building technology

The 1/4" Zyklop VDE ratchet is especially suitable for all couplings in electrical building installations.

For small spaces

With its extremely slim design, fine toothing with 80 teeth and a low return angle of only 4.5°, the Zyklop VDE ratchet allows easy working even in very confined spaces.

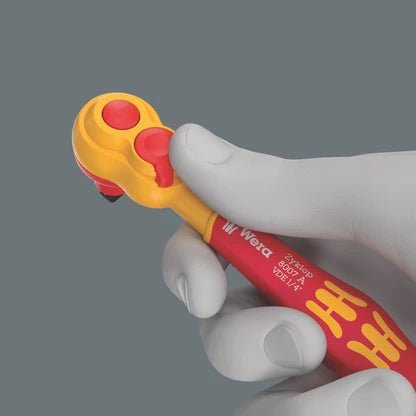

Switch lever

Switch lever for convenient change of direction.

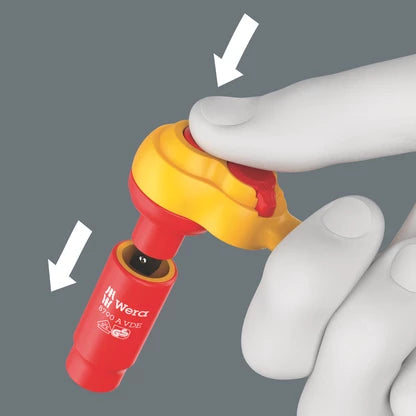

Ball lock

The ball lock ensures sockets and accessories fit securely, providing increased safety during operation. A short press on the release button allows the tool to be changed quickly.

Increased safety

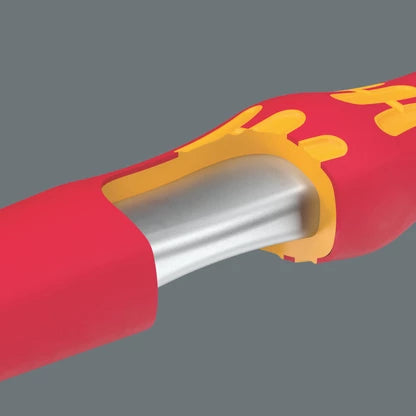

The Zyklop VDE tools offer increased safety thanks to their 2-component insulation with a yellow insulation core under an outer red insulation layer. The yellow insulation core becomes visible if the outer red VDE insulation layer is damaged.

Bit sockets with holding function for TORX® screws

The HF tools developed by Wera are ideal because they feature an optimised geometry of the original TORX® profile. The wedging forces resulting from the surface pressure between the drive tip and the screw profile mean that TORX® screws made according to Acument Intellectual Properties specifications are securely held on the tool!

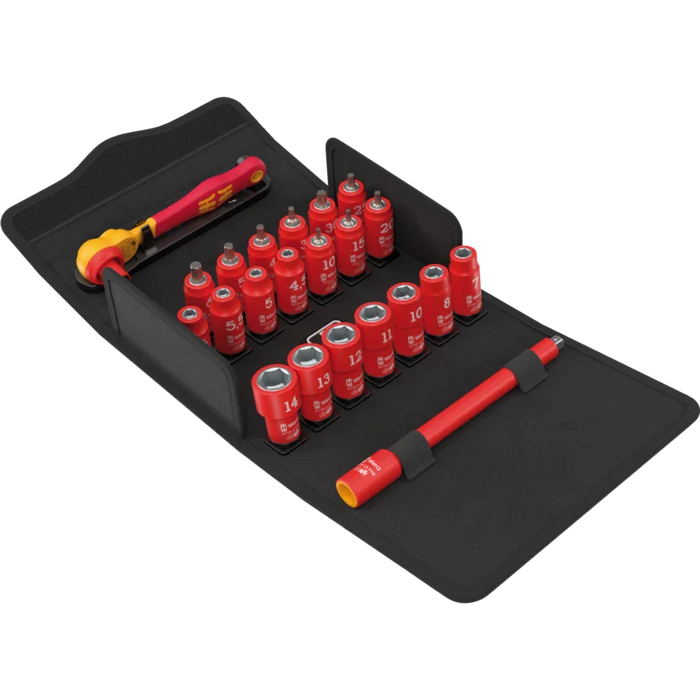

    • 22-piece 1/4" ratchet set; VDE-insulated

    • One Zyklop ratchet, 10 sockets, 5 bit sockets with holding function for TORX® screws, 4 bit sockets with holding function for hexagonal socket screws, one extension (150 mm)

    • Individually tested tools as per IEC 60900

    • Increased safety thanks to 2-component insulation with a yellow insulation core under an outer red insulation layer

    • Compact textile box with twist-to-unlock system: the tools are securely stored, yet easy to remove

    • Textile box made of robust material, protects surfaces from damage, can be docked onto the Wera 2go system

    • 8007 A VDE Zyklop Ratchet insulated with reversing lever 1/4" drive 1 x 1/4" x 144mm

    • 8790 A VDE Zyklop Socket insulated with 1/4" drive 1 x 4.5 x 41mm, 5 x 41mm, 5.5 x 41mm, 6 x 41mm, 7 x 41mm, 8 x 41mm, 10 x 41mm, 11 x 41mm, 12 x 41mm, 13 x 41mm, 14 x 41mm

    • 8767 A VDE HF Torx® Zyklop Bit Socket insulated with 1/4" drive with holding function 1 x TX10 x 46mm, TX15 x 46mm, TX20 x 46mm, TX25 x 46mm, TX30 x 46mm

    • 8740 A VDE HF Zyklop Bit socket insulated with 1/4" drive with holding function for hexagonal socket screws 1 x 3 x 46mm, 4 x 46mm, 5 x 46mm, 6 x 46mm

    • 8794 LA Zyklop VDE extension insulated long 1 x 1/4" x 150mm

    • Hook and Loop Fastener Strip 1 x 120 x 50mm

    • Brand: Wera

    • Part Number: 004967

    • Number of Pieces: 22 Piece
