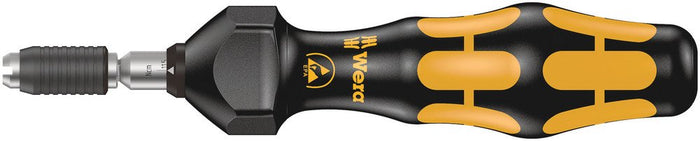

Wera Series 7400 ESD Adjustable Torque Screwdriver 0.3-1.00 Nm Halfmoon Drive 074788
Wera Series 7400 ESD Adjustable Torque Screwdriver 0.3-1.00 Nm Halfmoon Drive 074788
Wera Series 7400 ESD Adjustable Torque Screwdriver 0.3-1.00 Nm Halfmoon Drive 074788
Wera Series 7400 ESD Adjustable Torque Screwdriver 0.3-1.00 Nm Halfmoon Drive 074788
Wera Series 7400 ESD Adjustable Torque Screwdriver 0.3-1.00 Nm Halfmoon Drive 074788
Wera Series 7400 ESD Adjustable Torque Screwdriver 0.3-1.00 Nm Halfmoon Drive 074788
Wera Series 7400 ESD Adjustable Torque Screwdriver 0.3-1.00 Nm Halfmoon Drive 074788
Wera Series 7400 ESD Adjustable Torque Screwdriver 0.3-1.00 Nm Halfmoon Drive 074788
Wera Series 7400 ESD Adjustable Torque Screwdriver 0.3-1.00 Nm Halfmoon Drive 074788
Wera Series 7400 ESD Adjustable Torque Screwdriver 0.3-1.00 Nm Halfmoon Drive 074788
Wera Series 7400 ESD Adjustable Torque Screwdriver 0.3-1.00 Nm Halfmoon Drive 074788
Wera Series 7400 ESD Adjustable Torque Screwdriver 0.3-1.00 Nm Halfmoon Drive 074788
Wera Series 7400 ESD Adjustable Torque Screwdriver 0.3-1.00 Nm Halfmoon Drive 074788
Wera Series 7400 ESD Adjustable Torque Screwdriver 0.3-1.00 Nm Halfmoon Drive 074788
Wera Logo

Wholesale Wera Series 7400 ESD Kraftform Adjustable Torque Screwdriver (0.1-1.0 Nm) 074788

SKU: WER074788

074788 05074788001

$421.94

Suggested Retail Price
INC GST
Overview
Features
Specifications

Wera torque screwdriver. Dependable protection against electrostatic energy and associated damage. Variable torque setting option with highest precision. Simple adjustment of the required torque value without any special tools. Easy-to-read scale value. Rapidaptor quick-release technology for rapid bit change. Unlimited torque to loosen seized screws. Multi-component Kraftform handle with hard and soft zones for high working speeds, whilst being easy on the hand. Suitable for bits with a 4 mm Halfmoon drive (Wera series 9) and a 4 mm HIOS drive (Wera series 21).

Adjustable Torque Screwdrivers

Wera’s adjustable torque screwdrivers allow variable torque settings with maximum precision and ensure that the user gets the very best results in the familiar Wera design with superior ergonomics.

Wera ESD Tools

The requirements for ESD-safe screwdrivers are specified in the European standard DIN EN 61340-5-1. This standard also includes a handle that has to be out of a defined conductive material. The Wera products in the ESD series satisfy these standards and the even more stringent requirements demanded by some technology companies.

For Halfmoon and HIOS Bits

Features a combination bit holder for both bits with Halfmoon and bits with HIOS drive.

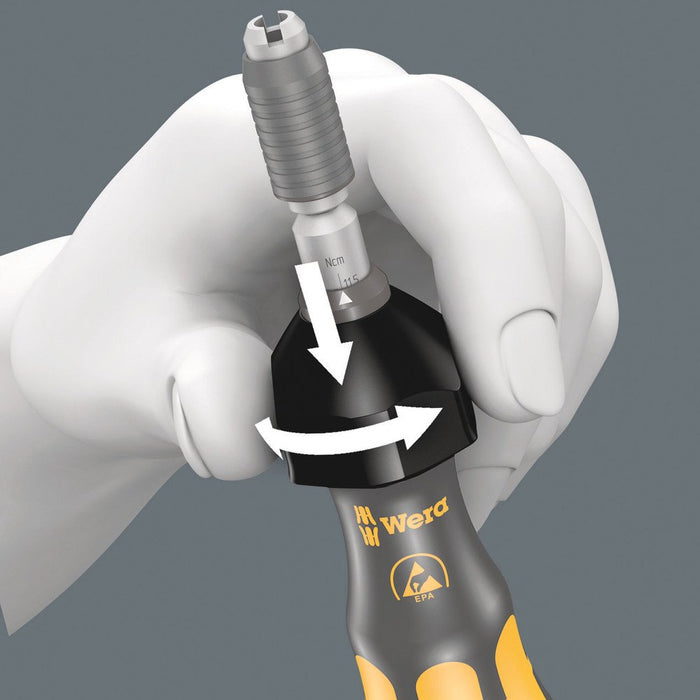

Setting with Speed

Simple setting of the required torque by hand.

Attachable magnifying glass

Articles 1430 ESD and 1431 ESD, all come with a magnifying glass. This can be easily attached on to the scale, dramatically improving visibility.

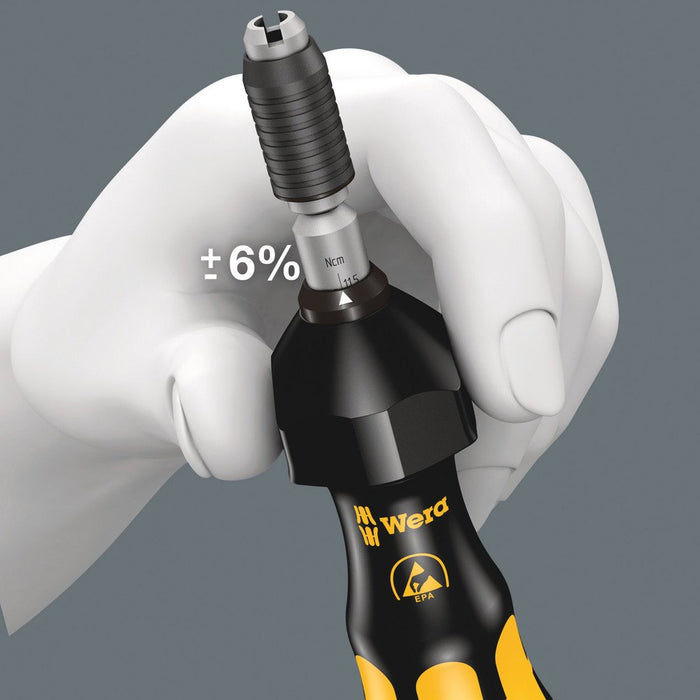

Measurement accuracy

Measurement accuracy is ± 6 % (article 1430: ± 10 %) in accordance with the standard DIN EN ISO 6789. Distinctly audible and noticeable excess-load signal when the pre-set torque is reached.

  • Adjustable Kraftform ESD torque screwdriver with quick-release chuck

  • ESD-safe tool thanks to surface resistance of ≤ 109 Ohm

  • Multi-component Kraftform Micro handle for fast and ergonomic screwdriving

  • Hexagonal anti-roll feature against rolling away

  • Suitable for bits with 4 mm halfmoon and 4 mm HIOS drive

  • Brand: Wera

  • Part Number: 074788

  • Main Scale Measuring Range Nm: 0.30-1.00

  • Main Scale Graduation Nm: 0.05

  • Handle Length: 89mm

  • Torque Wrench Length: 142mm

  • Torque Wrench Length (inches): 5 7/16"
