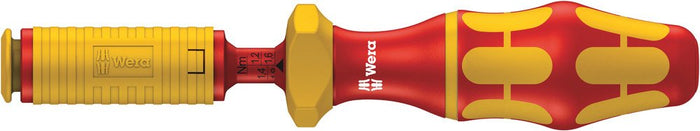

Wera Series 7400 VDE Adjustable Torque Handle 1.7-3.5 Nm 074757
Wera Series 7400 VDE Adjustable Torque Handle 1.7-3.5 Nm 074757
Wera Series 7400 VDE Adjustable Torque Handle 1.7-3.5 Nm 074757
Wera Series 7400 VDE Adjustable Torque Handle 1.7-3.5 Nm 074757
Wera Series 7400 VDE Adjustable Torque Handle 1.7-3.5 Nm 074757
Wera Series 7400 VDE Adjustable Torque Handle 1.7-3.5 Nm 074757
Wera Series 7400 VDE Adjustable Torque Handle 1.7-3.5 Nm 074757
Wera Series 7400 VDE Adjustable Torque Handle 1.7-3.5 Nm 074757
Wera Series 7400 VDE Adjustable Torque Handle 1.7-3.5 Nm 074757
Wera Series 7400 VDE Adjustable Torque Handle 1.7-3.5 Nm 074757
Wera Logo

Wholesale Wera Series 7400 VDE Adjustable Torque Handle 1.7-3.5 Nm 074757

SKU: WER074757

074757 05074757001

$394.01

Suggested Retail Price
INC GST
Overview
Features
Specifications

Torque VDE holder for safe work up to 1,000 volts. Adjustable torque value from 0.3-1.2 Nm. Distinct audible and perceivable excess load signal when the pre-set torque value is reached. Unlimited manual loosening torque. For Kraftform Kompakt VDE blades: the handle/interchangeable blade system allows a rapid exchange of the blade and thereby diverse applications.

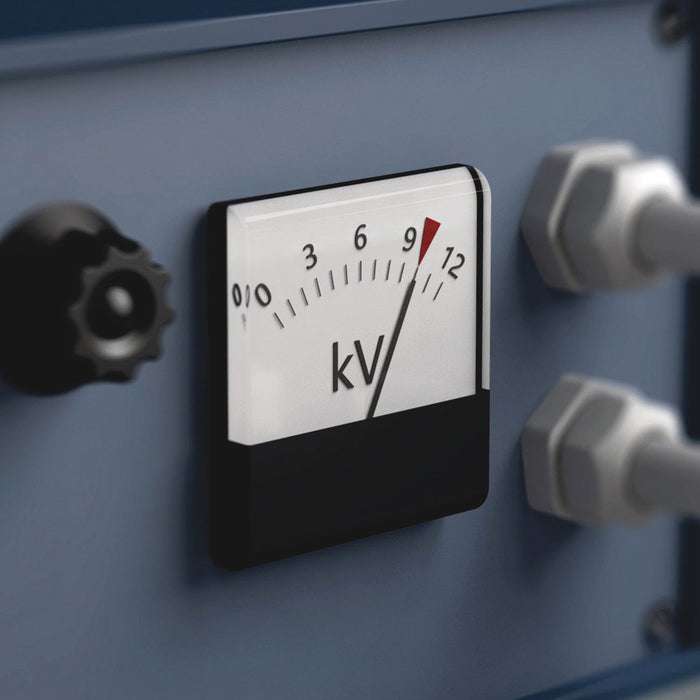

Individually tested

The individual testing at 10,000 volts, in accordance with IEC 60900, ensures safe working with loads up to 1,000 volts.

Kraftform adjustable torque handle for Electricians

Simple setting of the required torque by hand.

Kraftform adjustable torque handle for Electricians

Easy-to-read scale value. Measurement accuracy is ± 6 % in accordance with the standard EN ISO 6789.

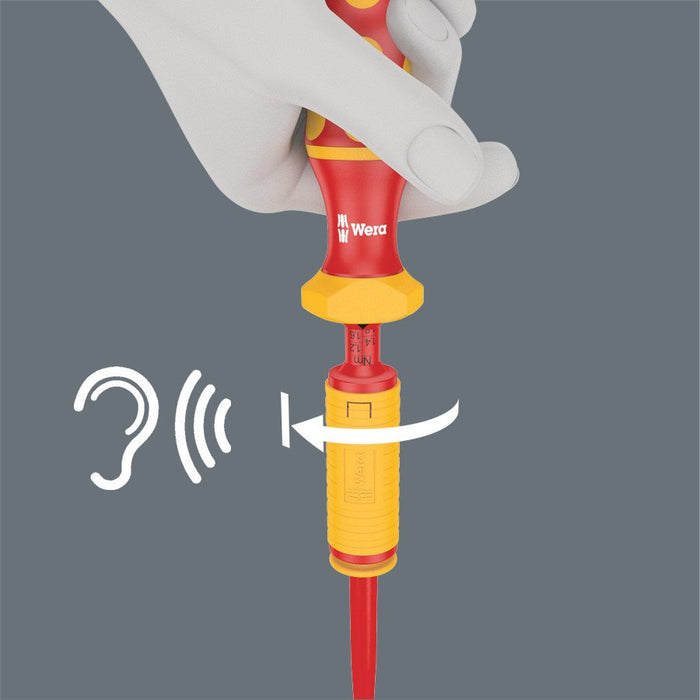

Excess-load signal

Distinctly audible and noticeable excess-load signal when the pre-set torque is reached.

Unlimited loosening torque

Unlimited torque for loosening seized screws.

Inserting the blade

According to the job, the insulated inter-changeable blade with the required tipstyle, or a switch cabinet key is inserted into the clamping mechanism.

Taking out the blade

By pulling and holding down the clamping sleeve the interchangeable screwdriver blade, or the switch cabinet key, is unlocked and can easily be taken out of the handle.

  • Adjustable Kraftform VDE torque holder

  • Adjustable torque from 0.3-3.5

  • Distinct audible and perceivable excess load signal when the pre-set torque value is reached

  • Suitable for Kraftform Kompakt VDE blades

  • Rapid exchange of the interchangeable blades

  • Brand: Wera

  • Part Number: 074757

  • Mounting Size: 9.0mm

  • Main Scale Measuring Range Nm: 1.7-3.5

  • Main Scale Graduation Nm: 0.10

  • Torque Wrench Length: 192mm

  • Torque Wrench Length (inches): 7 9/16"
