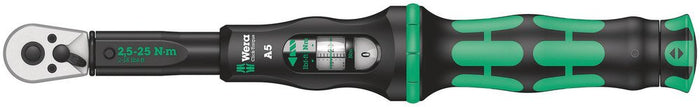

Wholesale Wera Click-Torque Wrench A 5 2.5-25 Nm Reversible Ratchet 1/4" Drive 075604

SKU: WER075604

075604 05075604001

$367.24

Suggested Retail Price
INC GST
Overview
Features
Specifications

Click-Torque wrench in the unmistakable, robust Wera design with high accuracy as per DIN EN ISO 6789-1: 2017-07. Easy setting and saving of the default value. The audible and tactile clicks on reaching the scale values also facilitate the safe setting of the desired torque value. The robust release mechanism guarantees a clearly audible and tactile release signal when the set torque is reached. For right-hand use (clockwise torque-control) and with 45-tooth reversible ratchet mechanism.

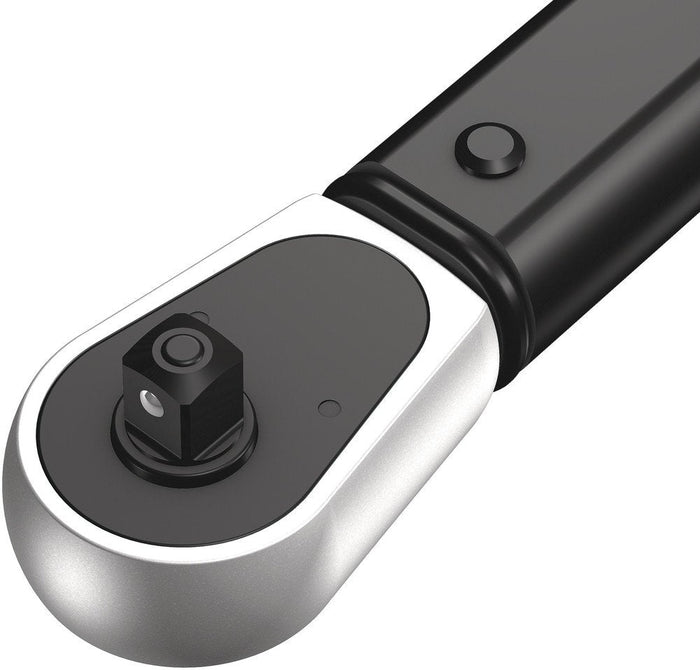

  • With 1/4" square drive, reversible ratchet, 45 teeth

  • Easy setting and saving of the desired torque value with audible and tactile clicks when reaching the scale values

  • Audible and tactile release mechanism when the set torque value is reached

  • Measuring range: 2.5-25 Nm; Precise to +/- 4% as per DIN EN ISO 6789-1:2017-07

  • Very robust design with ergonomic 2-component handle suitable for right-hand use

  • Mounting size (inches): 1/4"

  • Main scale graduation Nm: 0.10

  • Main scale measuring range Nm: 2.5-25

  • Subscale measuring range lbf. ft.: 1-18

  • Torque wrench length (mm): 290

  • Handle length G2 (mm): 121

  • Clock diameter (mm): 42

  • Diameter of the head (mm): 25

  • Height ratchet head H2 (mm): 11.5

  • Torque wrench length (inches): 11 27/64"

  • Handle length G2 (inches): 4 49/64"

  • Watch diameter (inches): 1 21/32"

  • Tip diameter (inches): 1"

  • Ratchet head height H2 (inches): 7/16"

  • Product Dimensions: 50 x 325 x 50mm

  • Product Weight: 522g
