Wholesale Wera Torque Wrench 80-400 Nm For 14x18mm Insert Tools 075656

SKU: WER075656

075656 05075656001

$1,216.09

Suggested Retail Price
INC GST
Overview
Features
Specifications

Click-Torque wrench in the unmistakable, robust Wera design with high accuracy as per DIN EN ISO 6789-1: 2017-07. Easy setting and saving of the default value. The audible and tactile clicks on reaching the scale values also facilitate the safe setting of the desired torque value. The robust release mechanism guarantees a clearly audible and tactile release signal when the set torque is reached. For right-hand and left-hand use and with 9x12mm insert square for the insertion of insert tools.

Click-Torque Wrench series

We wanted working with torque wrenches to be simple and accurate which is why we developed the Click-Torque wrenches. With the ability to set and save the default values and with the unmistakable, robust Wera design, these torque wrenches are the ideal tools for all bolting applications that require torque-controlled tightening (clockwise torque wrenches) and tightening and loosening (torque wrenches for insert tools).

Drive 14x18 mm

For 14x18 mm interchangeable insert tools.

Exact

Precision of ±3 % as per DIN EN ISO 6789-1:2017-07.

Easy and safe

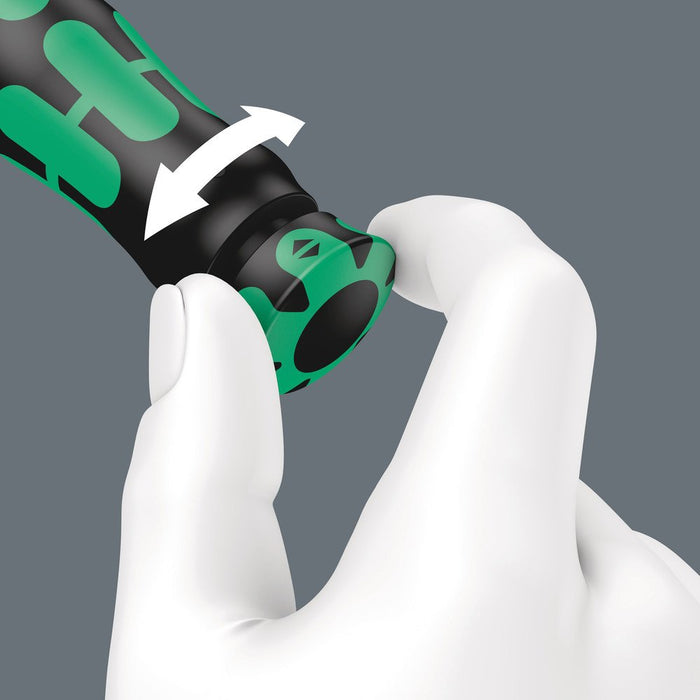

Easy setting and saving of the desired torque value; easy to read on main and fine scales.

Setting with Speed

With audible and tactile locking when the scale values are reached.

Release mechanism

On reaching the desired torque value, an audible and tactile mechanism is triggered.

  • For 14x18 mm interchangeable insert tools.

  • Easy setting and saving of the desired torque value with audible and tactile clicks when reaching the scale values

  • Audible and tactile release mechanism when the set torque value is reached

  • Measuring range: 80-400 Nm; precision ±3 % as per DIN EN ISO 6789-1:2017-07

  • Very robust design with ergonomic 2-component handle suitable for right and left-handed use

  • Brand: Wera

  • Part Number: 075656

  • Mounting Size: 14 x 18mm

  • Main Scale Measuring Range Nm: 80-400

  • Main Scale Graduation Nm: 1.0

  • Subscale Measuring Range: 60-295

  • Torque Wrench Length: 665mm

  • Handle Length G2: 140mm

  • Clock Diameter: 47mm

  • Diameter of the Head: 32mm

  • Height Ratchet Head H2: 26mm

  • Torque Wrench Length (inches): 25 25/32"

  • Handle Length G2 (inches): 5 33/64"

  • Watch Diameter (inches): 1 27/32"

  • Tip Diameter (inches): 1 17/64"

  • Ratchet Head Height H2 (inches): 1 1/32"
